Feature:
High scalability

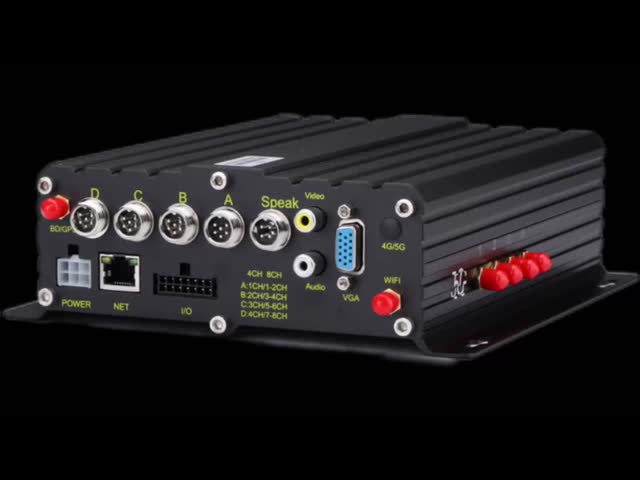

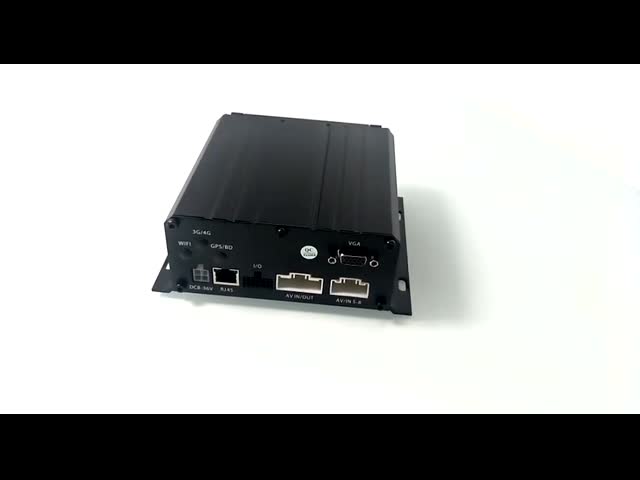

MDVR Specification:
9204 series is a high-performance and highly extensible product specially developed for vehicle-mounted video monitoring and remote video monitoring. It adopts a self-pop-up structure design of hard disk, high-speed processor NT98323 and embedded operating system, and integrates IT cutting-edge field H.264/H.265 video compression/decompression, 4G network, GPS/BD positioning and other technologies. It has the characteristics of strong earthquake resistance, simple appearance, flexible and convenient installation, comprehensive function and high reliability. Suitable for public security police, financial escort, long-distance passenger transport, road administration inspection and other vehicle movement monitoring fields.
| Item | parameters | |
| Audio and Video Inputs | video input | AHD:4ch 1080/25fps IPC:Scalable 1-4ch |
| audio input | 4ch audio input | |
| Audio and Video outputs | video output | Default 1-way CVBS output (VGA output optional) |
| speech output | 1ch audio output | |
| Audio and video parameter coding | video coding | H.264 Main Profile/H.265 |
| Resolution | 1080P/720P/D1 optional | |
| audio coding | Default G.726,G.711A optional | |
| storage space | HDD | 1 2.5-inch optional: SSD/HDD hard disk |
| SD | Support 1 SD card | |
| wireless network | 4G | Supports 1 SIM card, optional: all major communication modules in the world |
| WIFI | 2.4/5.8G optional | |
| locate mode | BD/GPS | Support for mixed positioning, speed detection, time synchronization |
| interface | USB | USB2.0 interface, support export data, external engineering treasure |
| serial port | Support 2 RS232, 1 RS485, can be connected with external sensor | |
| I/O | 4 level inputs, 2 analog inputs, 2 alarm outputs | |
| network interface | Support external IPC, support hybrid NVR function | |
| · Intercom | 1 special intercom handheld mark interface | |
| Physical Specifications | size | 176.9mm(L)*186.8mm(W)*54mm(H) |
| weight | NW:1.4kg GW:2kg(M51Hv-DGNE1-L as a standard) | |
| work environment | operating temperature | -20〜+70℃ |
| operating humidity | 8%〜90%(No condensation) | |
| Other
| operator schema | remote control,APP,WEB |
| · Gravity sensor | Built-in G-Sensor | |
| Configurable AI algorithms | Face recognition ,People Counting,ADAS+DMS | |
Fuel sensor specification
ZC08 Fuel sensor is independent research and development by Vanwin Tech, which within innovative technologies. It can detect fuel level continuously. And The resolution is less than 1mm. JT606 can be cut the length to fit the height of fuel tank .Simply flanged installation that no need extra screws. Wide voltage input to make sure no voltage limits under any situation.
Features:
1)It can be cut according to the height of fuel tank.
2)Integrated structure without any elastic elements, also support various signal output.
3)Push-button field calibration, it’s very convenient.
4)Wide Power voltage input.
| NO. | Item | Performance parameters |
| 1 | Collection principle | Capacitance |
| 2 | Size | 100mm to 1500mm(minimum can be detected 100mm,maximum can be detected 1500mm) |
| 3 | Electrical parameters | Input DC:4—70V |
| 4 | Power Consumption | 0.13W/5V, 0.19W/12V, 0.38W/24V |
| 5 | Signal output (can be customized) | Voltage output:0—5V |
| Digital output:RS-232 RS-485 | ||
| Analog resistant output:10—500Ω | ||
| Current output: 4—20mA | ||
| Communication baud rate:2400,4800,9600,57600,115200 | ||
| 6 | Detection of liquid type | Diesel, bio diesel, kerosene, gasoline, etc. |
| 7 | Use of the environment | Work temperature:-40℃~+85℃ |
| Save temperature:-40℃~+105℃ | ||
| 8 | Material | Aluminum alloy |
| 9 | Protection class | IP67 |
| NO. | Item | Performance parameters |
| 1 | Collection principle | Capacitance |
| 2 | Size | 100mm to 1500mm(minimum can be detected 100mm,maximum can be detected 1500mm) |
| 3 | Electrical parameters | Input DC:4—70V |
| 4 | Power Consumption | 0.13W/5V, 0.19W/12V, 0.38W/24V |
| 5 | Signal output (can be customized) | Voltage output:0—5V |
| Digital output:RS-232 RS-485 | ||
| Analog resistant output:10—500Ω | ||
| Current output: 4—20mA | ||
| Communication baud rate:2400,4800,9600,57600,115200 | ||
| 6 | Detection of liquid type | Diesel, bio diesel, kerosene, gasoline, etc. |
| 7 | Use of the environment | Work temperature:-40℃~+85℃ |
| Save temperature:-40℃~+105℃ | ||
| 8 | Material | Aluminum alloy |
| 9 | Protection class | IP67 |
Product Picture
